G 110 PN

Feeding Systems & Vertical Buffers

G 110 PN

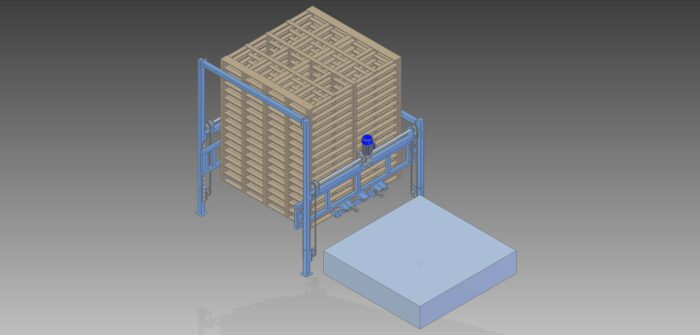

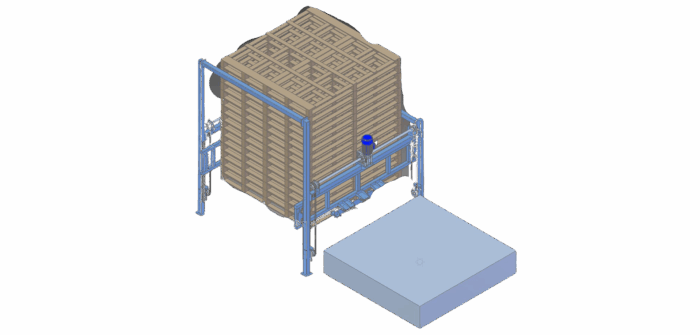

AUTOMATIC STACKER / UNSTACKER MACHINE

Pallet stacker module for empty pallets / feeder / outfeeder.

Electronic stacker for feeding / outfeeding empty pallets into the working line – complete with vertical storage up to 2.50 m.

Automatic module for stack pallets, predesigned to be introduced into automatic production feeding lines.

Stacking and raising programmable and changeable based on the size/request.

  • Dimensions: 3,25×3,00xH3,10mt
  • Weight: 1450 Kg
  • Installed power: 4,5 Kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Production: 3 pcs/min
