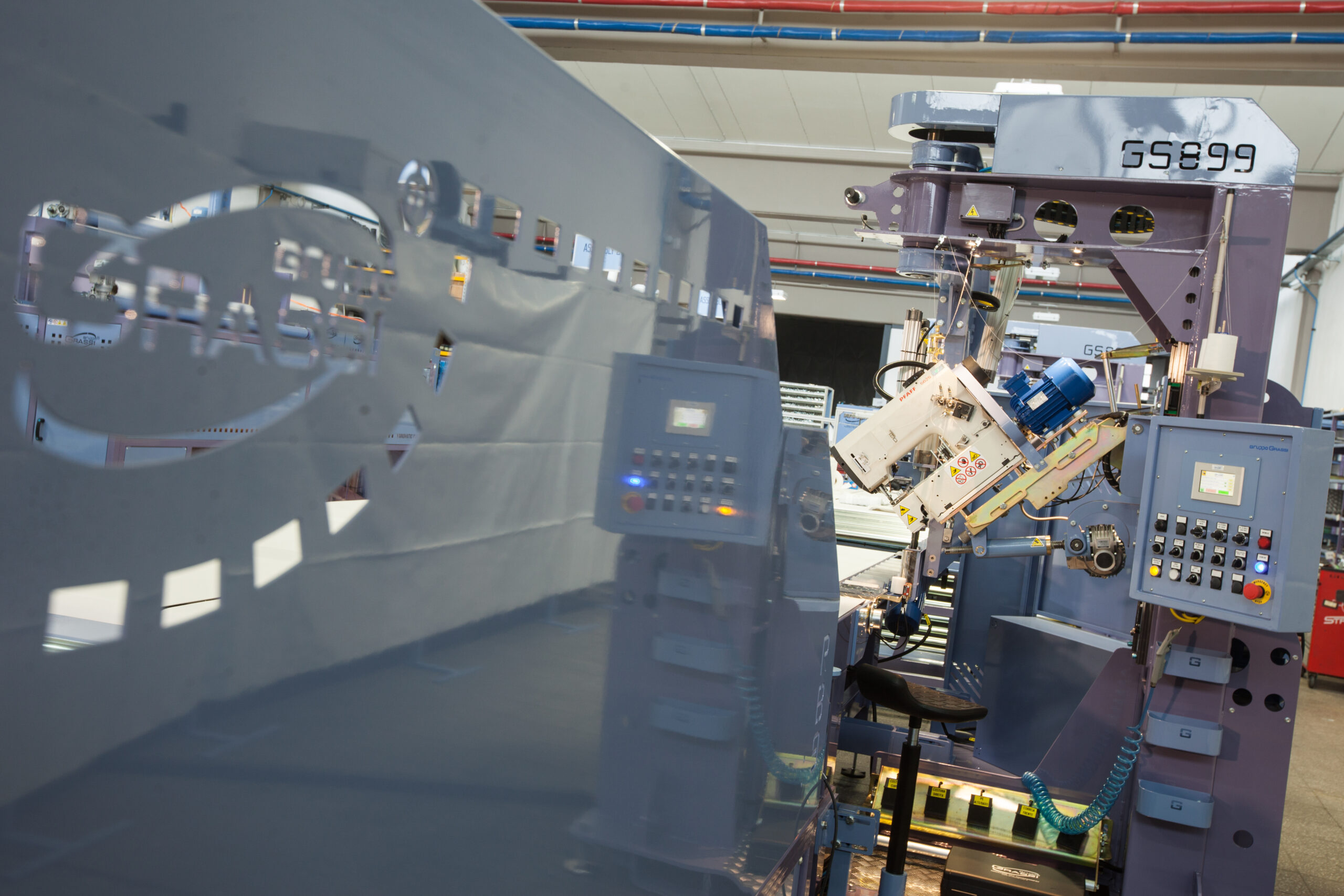

GS 899 E
Automatic electronic tape edge machine with fixed location.
Automatic electronic tape edge machine with fixed location.
The technological progress achieved over the years allowed us create a simple, practical, fast, functional, highly productive machine, able to adapt easily to all the types of mattresses on the market today, yet particularly suitable for companies with unskilled staff.

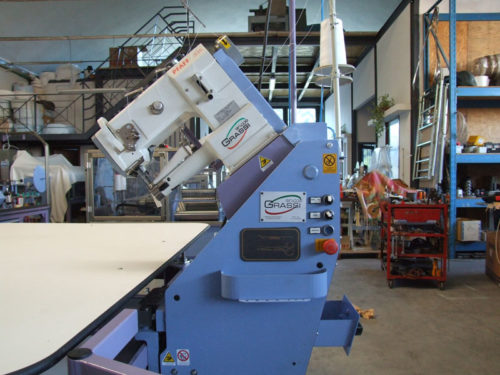

Triple feed sewing heads, converted, tested and certified in the GRASSI MACHINERY laboratories, suitable.
For various types of light and heavy fabrics and upholstery.
All the machines are equipped with a soft start control with needle up and foot release automatic position. Lifting and tilting is electronic.

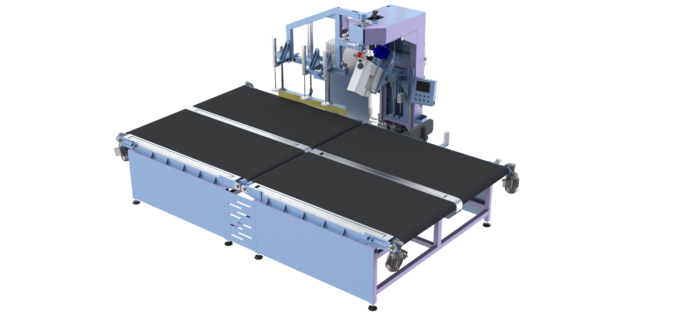

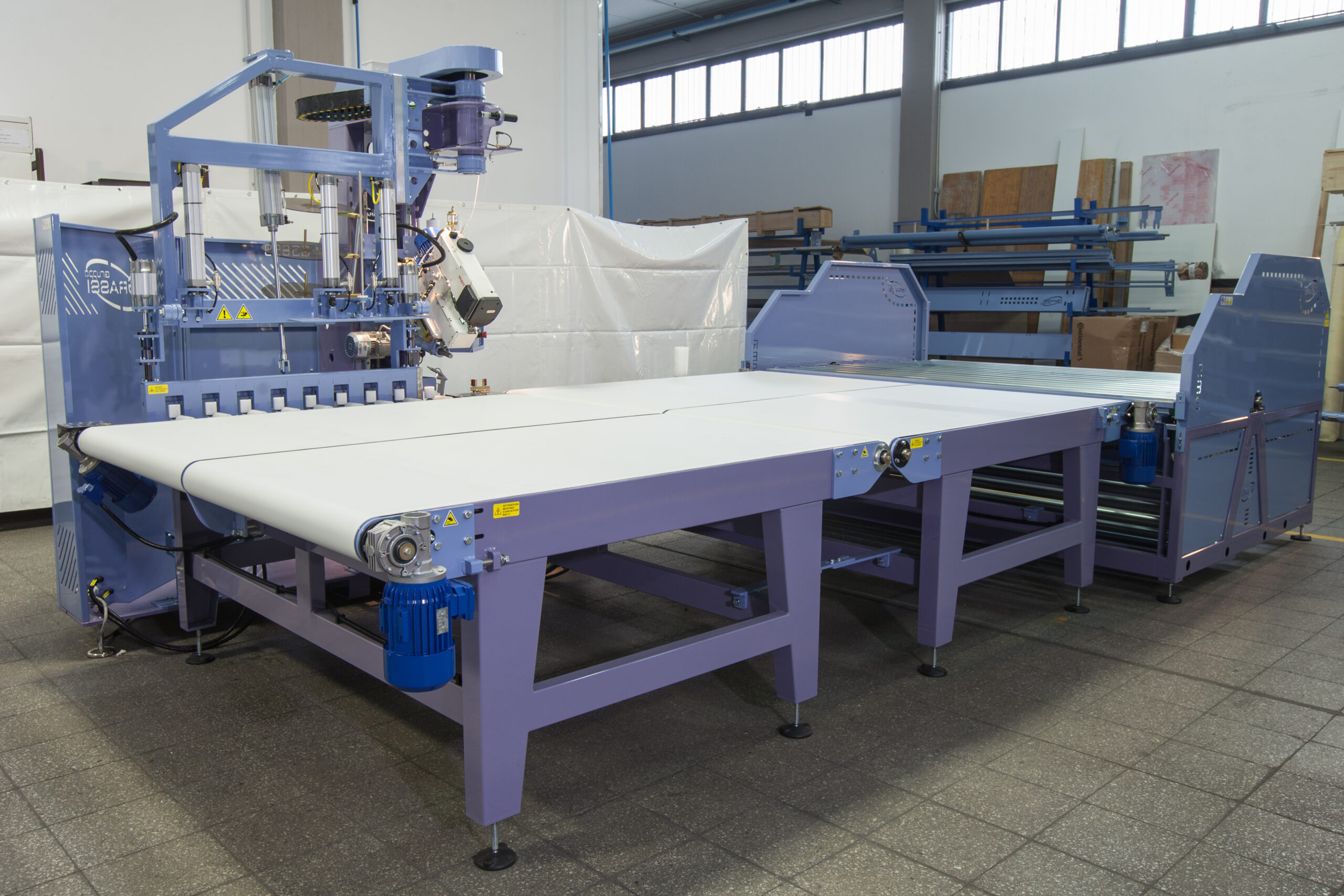

The automatic tape edge machine GS 899 consists of:- 2 closed loop conveyor belts

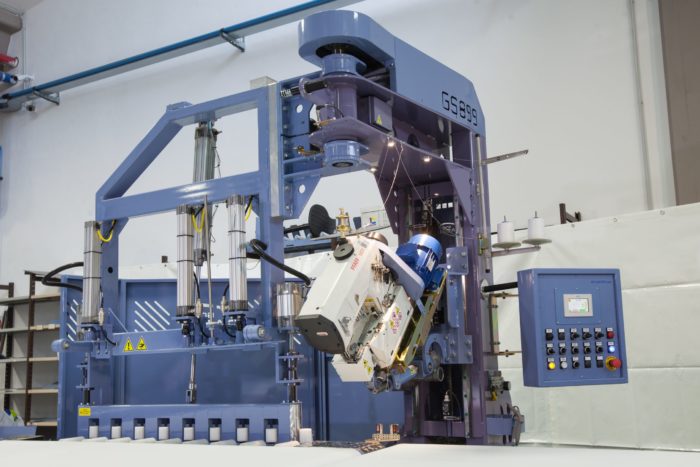

- Sewing group whose height/inclination is electronically controlled
- Fully automatic, full-speed module for mattress rotation by 90°

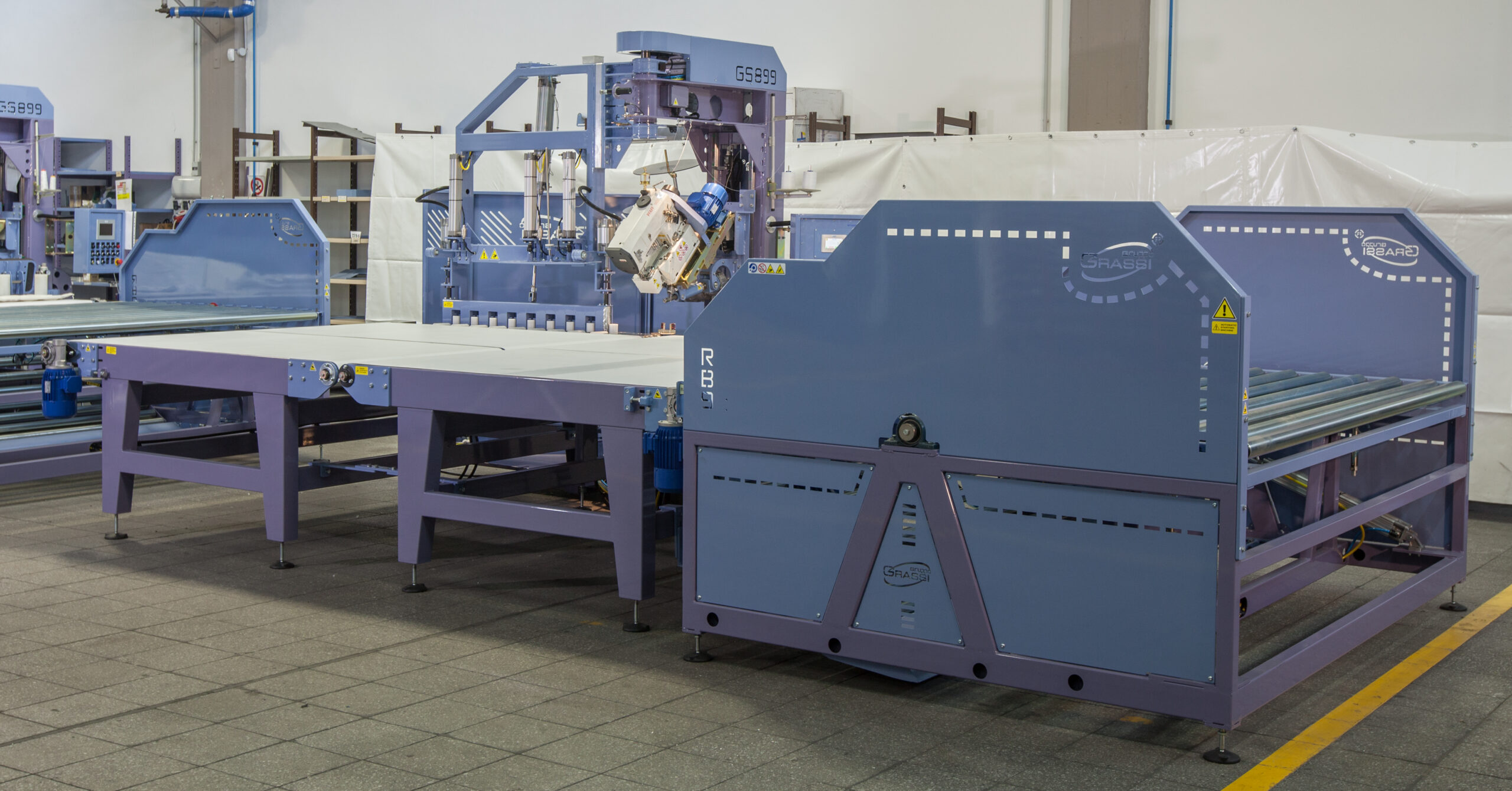

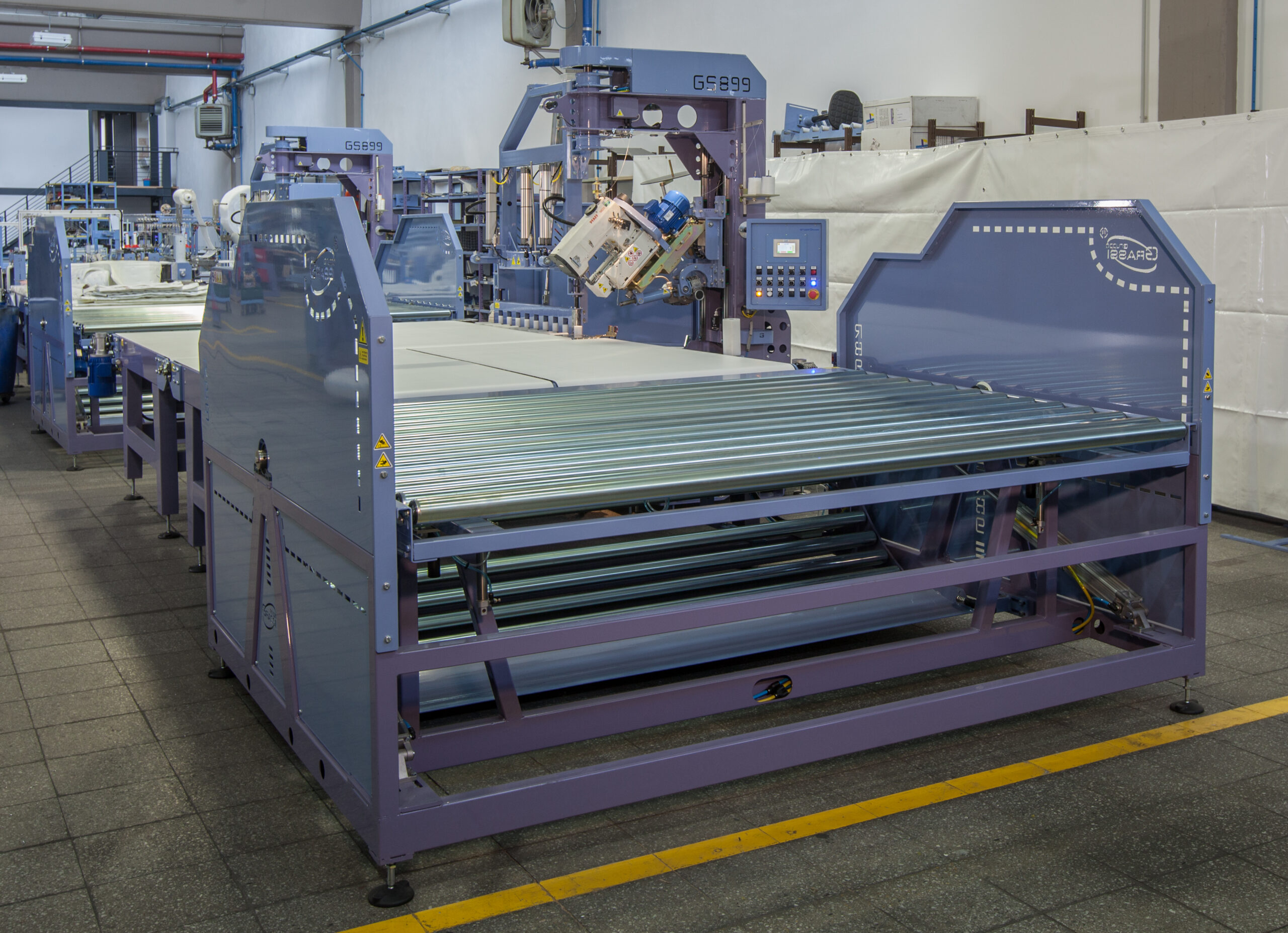

- External module for automatic overturning of the mattress.
- GS 899 E Fixed station automatic tape edge machine – sewing head TAKING 300 U.
- GS 899 E PRO Fixed station automatic tape edge machine – sewing head PFAFF 5625.
- GS 899 S Fixed station automatic tape edge machine – without overturning module.
- GS 899 EVO Fixed station automatic tape edge machine – 4 independent conveyor belts.
- Maximum stapler speed: 3500 stitches per minute
- Rotation: Automatic through coaxial gripper
- Tipping: Automatic by means of external “Modul System” type tilter
- Sewing head: Choice between TAKING 300 U or PFAFF 5625
- Dimensions: 6.00×3.30xH2.50 m
- Weight: 2,150.00 Kg
- Installed power: 3,5 Kw
- Power supply: 400 V + N + T – 50/60 Hz
- Air pressure: 6/8 BAR
