M115PLUS

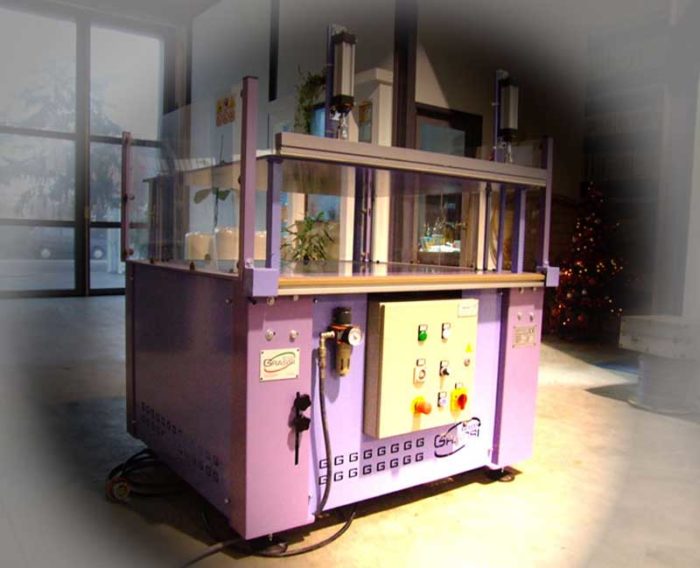

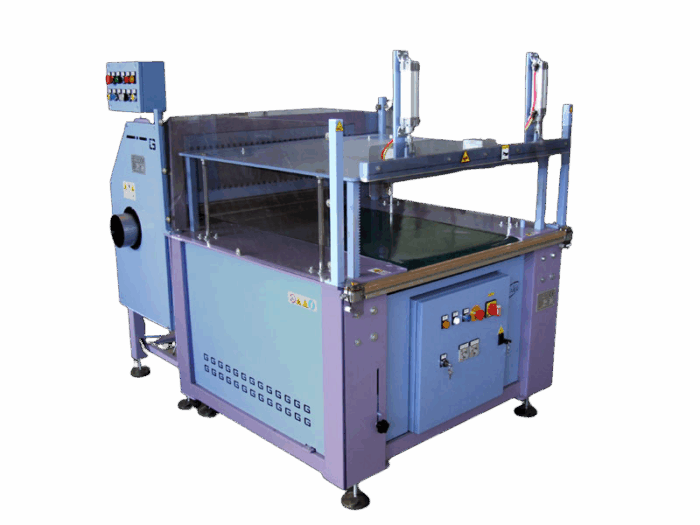

Macchina linea cuscini M 115 PLUS Gruppo Grassi
M115PLUS
M115PLUS
M115PLUS
M115PLUS
M115PLUS

Vacuum line for pillow covers and quilts.

Automatic system to wrap, press and roll pillows, quilts and covers under vacuum.

It is possible to insert pillows in fibre, latex and polyurethane of different densities, sizes and shapes, as well as eiderdowns, blankets, quilts, etc with volume reductions up to 70-80%

Categories: ,

PRESS+ROLL pillow

Automatic

Description

The line M 115 PLUS consists of:

  • 4 piston self-aligning pneumatic press, pressing range: 100×100 cm.
  • Sealing bar in nickel chrome with electronic temperature control, installed at the entrance of the press
  • Automatic pillow rolling machine with output diameter of 15cm. or 20cm. (to be notified at time of order).

AVAILABLE VERSIONS:

Z 2.7 EPress complete with sealing bar
MARINE 115Automatic rolling machine to be used with press
M 115 PLUSComplete line for packaging, pressing and rolling under vacuum



Features

TECHNICAL FEATURES :

  • Production: 2 cycles per minute
  • Usable passage height: 80 cm.
  • Maximum working dimensions: 0.80 × 0.80 m.
  • Type of cushions: polyurethane / fiber / latex / etc.
  • Dimensions: 1.20 × 1.90 × 1.60 m.
  • Weight: 1.100 Kg. C.ca
  • Installed power: 3 Kw.
  • Power supply: 400 V + N + T – 50/60 Hz.
  • Air pressure: 6/8 BAR
