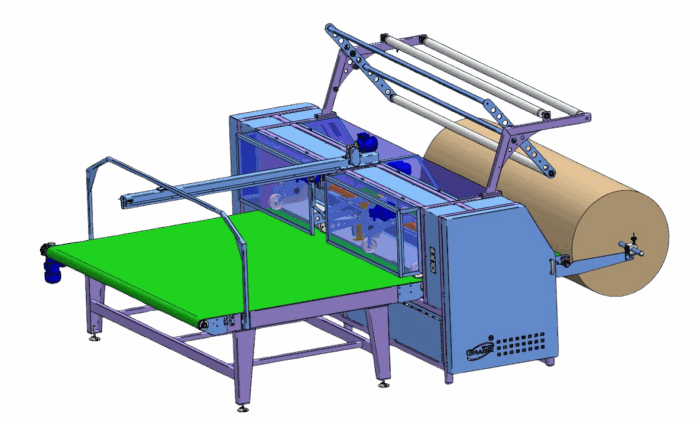

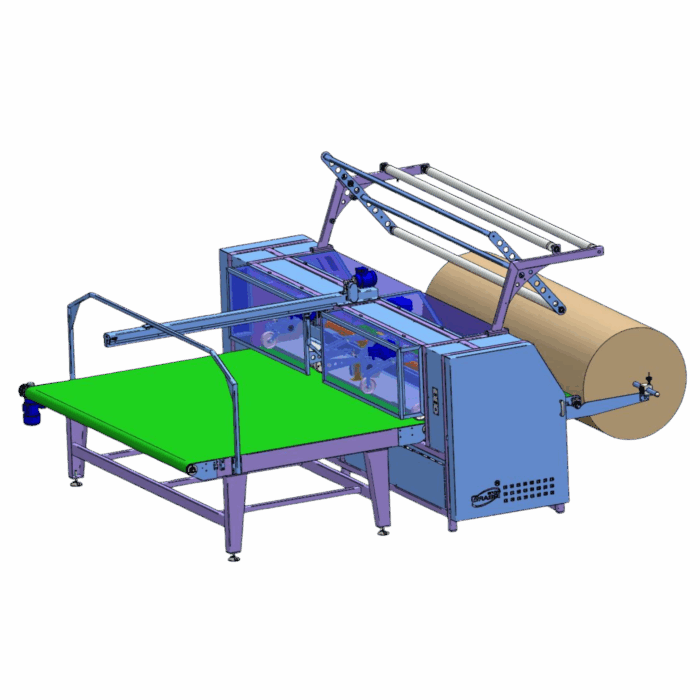

TGM 3.3 EVO

Fabric Roll Cutter

TGM 3.3 EVO

ELECTRONIC CUTTING MACHINE – MULTIBLADES FOR FABRIC IN CONTINUOUS OR IN ROLLS

High precision cutting machine with millimeter tolerance for cut and trimming on 4 sides of quilted panels or fabrics.

Special modified unit for cutting the whole range of fabrics, including: stretch fabric, Jacquard fabric, non-woven, padded and quilted fabric, polyester, polyurethane and visco-latex.

TGM 3.3 Electronic cutter has a “Touch-Screen” color monitor, with digital program setting where to customize cut recipes, production counters and sequential cut orders.

22 blades installed on the whole range (2.50mt wide).

  • Dimensions: 4,10×2,30xH1,90mt
  • Weight: 1900 Kg
  • Installed power: 7 Kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Productivity: 12 mt / min
