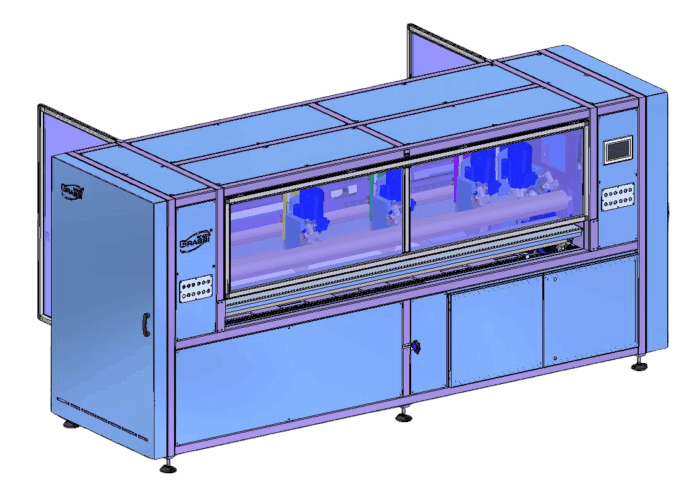

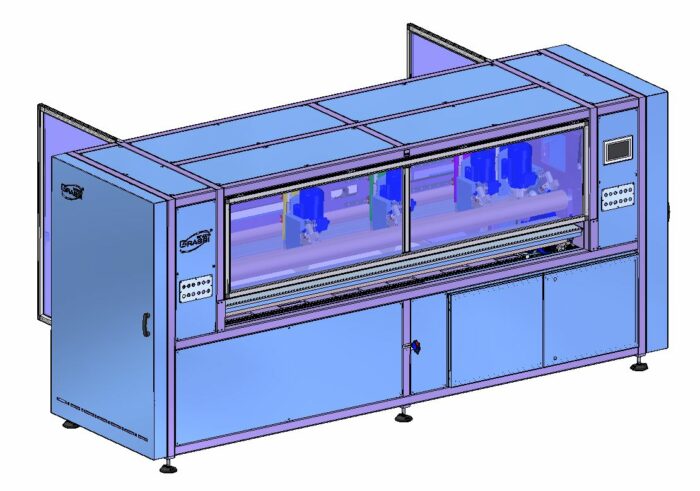

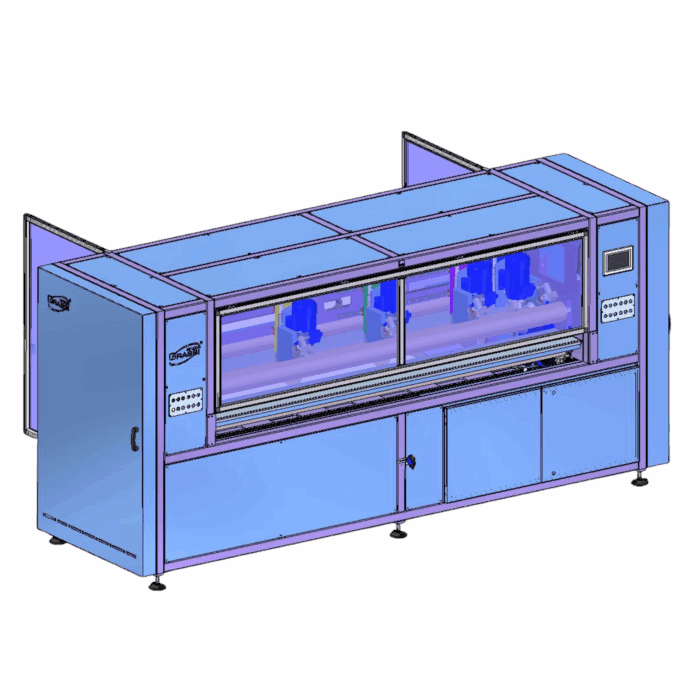

TGM 3.3 EVO
ELECTRONIC CUTTING MACHINE – MULTIBLADES FOR FABRIC AND FABRIC ROLLS
High-precision cutting machine with millimetric tolerance for cutting and trimming on 4 sides of quilted panels or fabrics.
Specially modified for cutting the whole range of fabrics, including: stretch fabric, Jacquard fabric, non-woven, padded, quilted fabric, polyester, polyurethane and visco-latex.
TGM 3.3 EVO has a “Touch-Screen” monitor, with digital program setting where to customize cut recipes, production counters and sequential cut orders.
22 blades installed on the whole range (2.50 mt wide).
- Dimensions: 4,10×2,30xH1,90mt
- Weight: 2450 kg
- Installed power: 7 kw
- Power supply: 400 V + N + T – 50/60 Hz
- Air pressure: 6/8 BAR
- Production: 3 pcs / min
