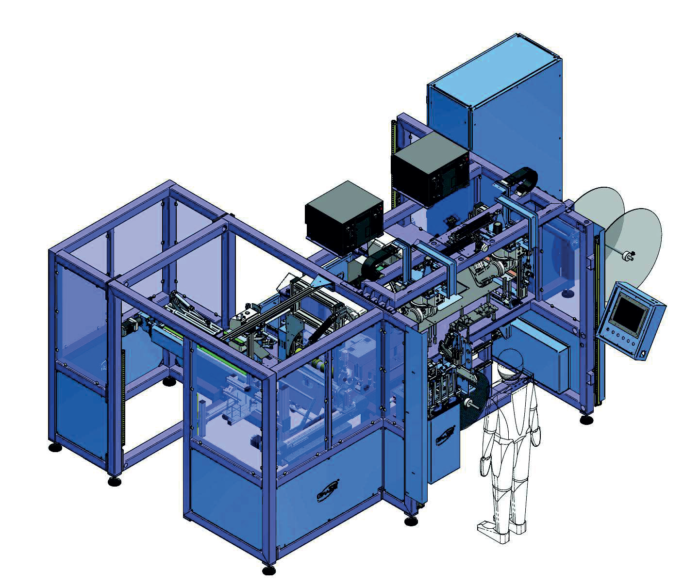

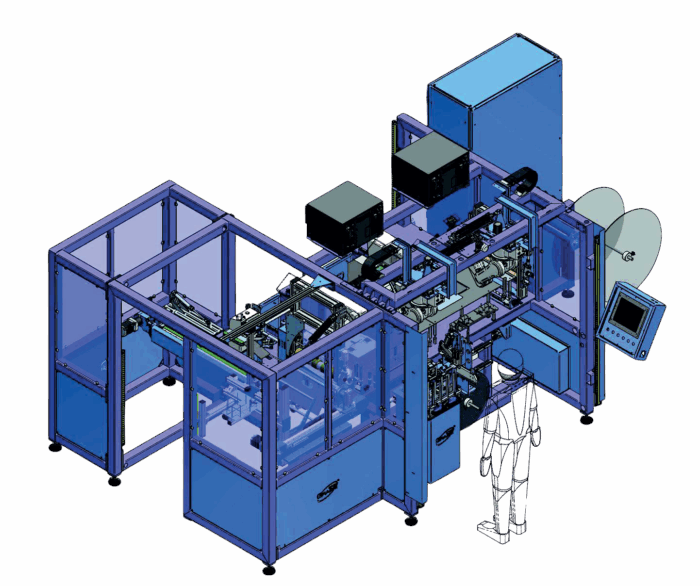

Z 2.2 EVOLUTION

You are here: Home / PRODUCTS / Handle Machines / Z 2.2 EVOLUTION
Macchina Manigliatrice Z 2.2 EVOLUTION Gruppo Grassi



Categories: Handle Machines, PRODUCTS

Apply handles + Close band

Automatic

  • Description
  • Features

Description

High evolution automatic machine to apply handles, aerators, labels, etc. On mattresses border with automatic round closing of the border.

Dedicated to the most demanding companies, for those who don’t accept compromises, “Z 2.2 EVOLUTION” is a combination of advanced technology and automation applied to independent functional work stations which allow a full automatic work cycle.

Application of handle on mattress border, with load, positioning and synchronized automatic stitching with module to apply aerators, labels and round closing of the border, besides marking corners and/or handles with border cutting.

Z 2.2 EVOLUTION consists of multiple production stations:

  • Automatic synchronized feeding station of border from roll.
  • Measuring, cutting and application station of handle from roll.
  • Station with multiple feeder of pre-cut handle with logos / names / brands / etc.
  • Handle sewing station with single needle head, thread trimmer (operating range 22x10cm.)
  • Station for the application of aerators at the desired position.
  • Programmable high precision measuring, angle marking, and cutting station.
  • Station for the application of side label on the closure of the border.
  • Sewing station with 5 thread overlock, triple feed, for round closing of the border

AVAILABLE VERSIONS:

Z 2.2 EVOLUTION: Automatic machine with 22x10cm sewing range.

Z 2.2 EVOLUTION EXSTRA: Automatic machine with 30x10cm sewing range.

Z 2.2 EVOLUTION PRO: Automatic machine with dual handle feeder, from roll and pre-cut.

Z 2.2 EVOLUTION SPEED: High throughput automatic machine (2 full borders per minute)

Features

TECHNICAL FEATURES :

  • Production: n. 1 complete single band / minute (optional 2 / min)
  • Sewing machine: 1-needle thread-lock lockstitch
  • Overlock machine: 5 threads, triple transport, thread trimmer
  • Programs and drawings: Independent setting and acquisition of programs and drawings
  • Working range: 220x100mm. (optional extended field)
  • Aerator module: Vela 40 (other sizes on request)
  • Label: From 5x10cm. at 20x20cm.
  • Dimensions: 4.20×3.00xH2.10 m.
  • Weight: 2.850,00 Kg
  • Installed power: 6 Kw.
  • Power supply: 400V + N + T – 50/60 Hz.
  • Air pressure: 6/8 BAR

Related products

  • Macchina Manigliatrici Z 2.2 S EVO Gruppo Grassi

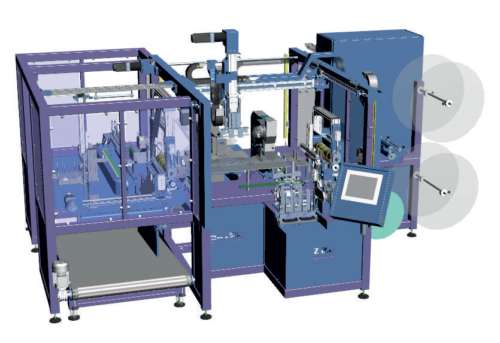

    Z 2.2 S EVOLUTION
