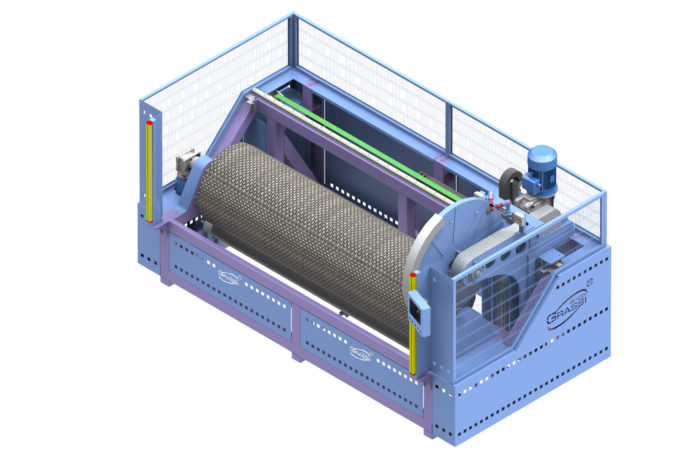

Z 2.9 – 1000

FABRIC ROLLS CUTTER MACHINE WITH H 1000mm – ROTATIVE BLADE

The Z 2.9-1000 rotary cutter boasts a 1000mm blade, suitable for cutting rolls up to 55cm in diameter.

It is ideal for various fabrics, such as stretch, Jacquard and elasticized materials.

With two pneumatic Borazon sharpening stones, the machine ensures consistent blade sharpness.

The mobile cutter unit, mounted on a rotating shaft, offers stable operation.

It includes customizable cutting recipes, an inverter for adjusting blade speed, automatic lubrication and cooling systems to maintain optimal performance, especially during high-volume cutting.

  • DIMENSIONS : 3,70×2,10xH2,50mt
  • WEIGHT: 1700 kg
  • POWER :  6 Kw
  • POWER SUPPLY :  400V+N+T    50/60Hz
  • AIR PRESSURE :  6/8 Bar
  • PRODUCTION: 1 pc / min
