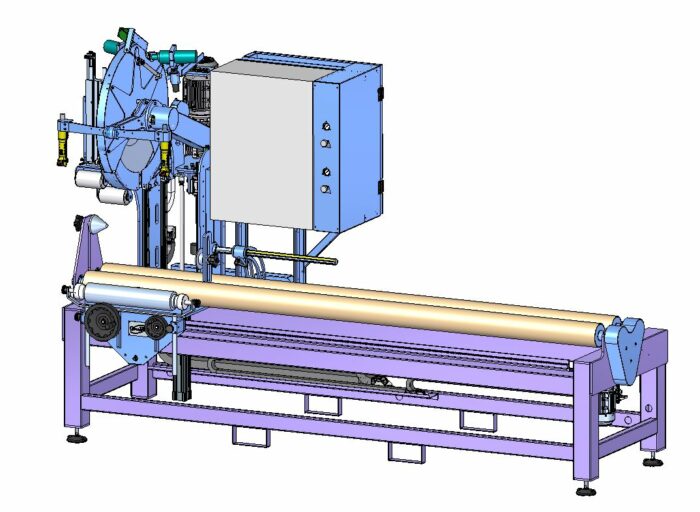

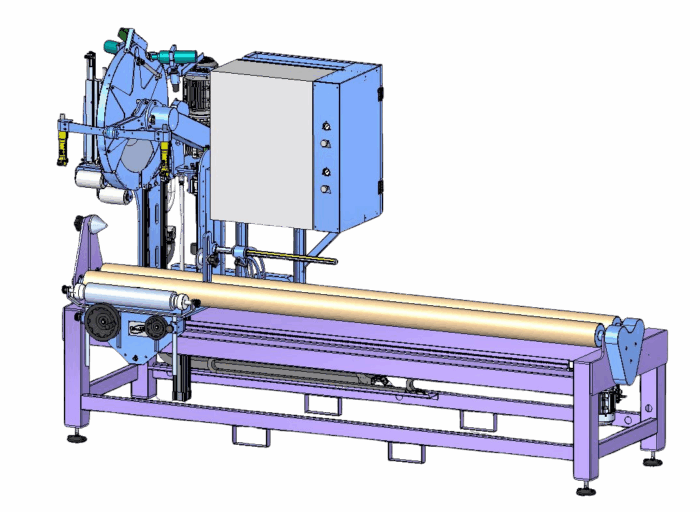

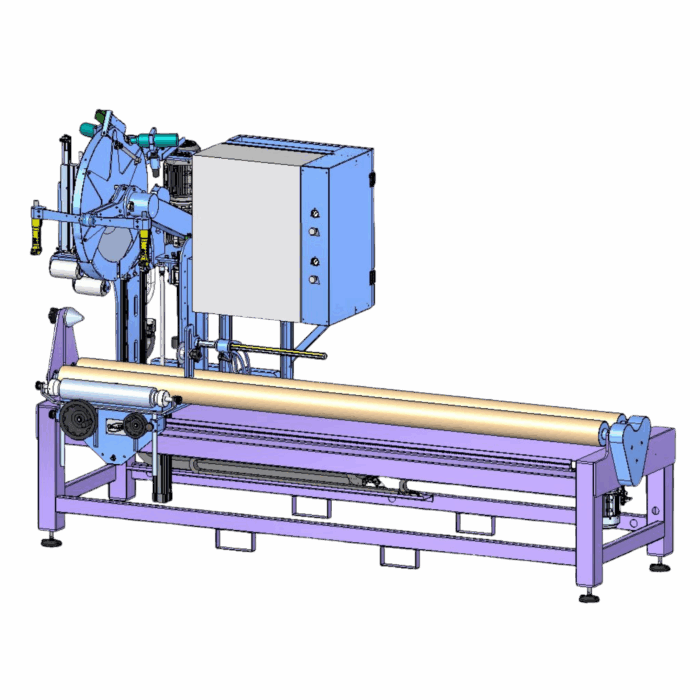

Z 2.9 – 700 PRO

FABRIC ROLLS CUTTER MACHINE WITH H 700mm – ROTATIVE BLADE – PRO VERSION

Evolution of the Z 2.9-700, the PRO version is completed with all optionals for fabric rolls handling:

N.1 Mobile positioning unit for alignment of the blade to fabric rolls;

N.2 Motorized Borazon sharpening stones;

N.1 Cutting system with inverter for blade speed variation;

Automatic blade lubrication & cooling;

Stretch foil loader for fabric roll plastic cover around;

Extra supports and tools for various roll diameter handling.

  • Dimensions: 4,10×1,35xH2,30mt
  • Weight: 1000 Kg
  • Installed power: 5 Kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Productivity: 5 pcs/min
