Z 200 A

Conveyors, Handling & Transport systems

Z 200 A

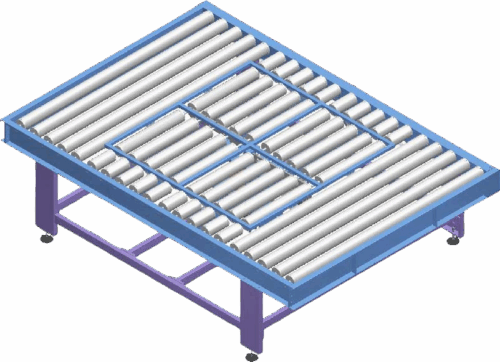

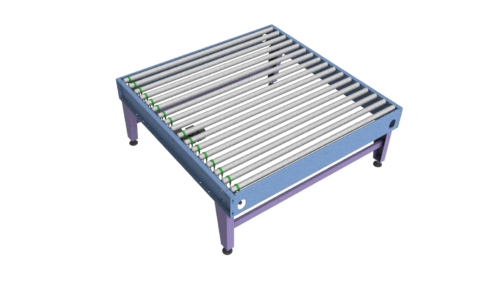

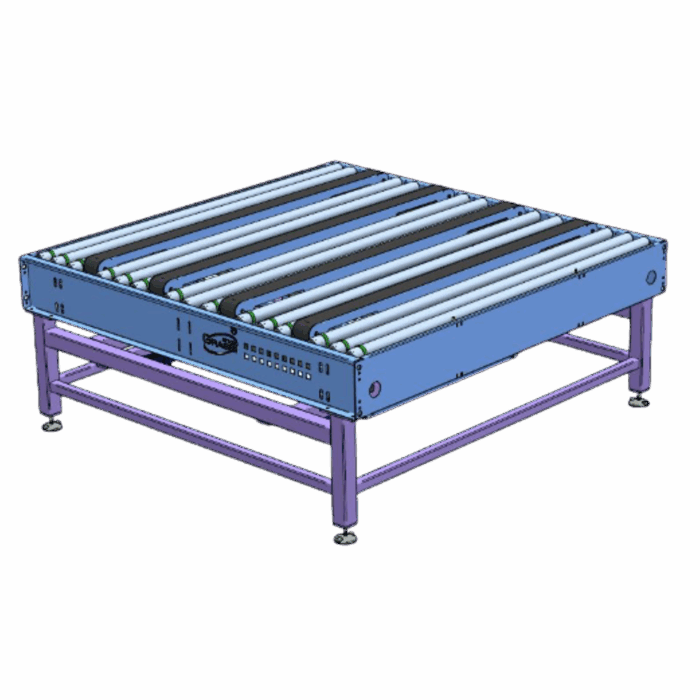

ROLLER CONVEYOR – 4 WAYS

Electronic motorized roller conveyor, 4-way directions.

Complete of motor, photocells, inverter and remote control.

Traction performed via long shaft and elastic belts. Special function with n. 4 conveyor belts to deviate the direction of the product by 90°.

Standard Dimension: 220 x 220 cm.

Working Level Height: From 85 cm to 95 cm.

  • Dimensions: 2,20 x 2,20 x h0,90 mt
  • Weight: 520 kg
  • Installed power: 1,5 kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Production: 50 mt/ min
