Z 200 OPENING

Conveyors, Handling & Transport systems

Z 200 OPENING

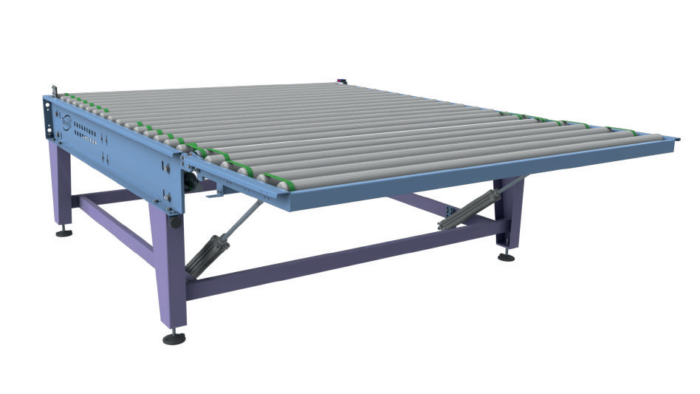

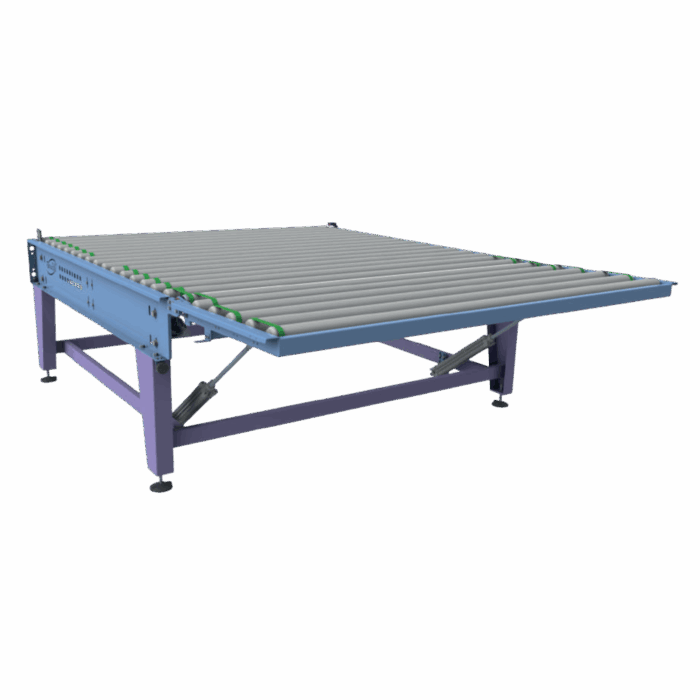

ROLLER CONVEYOR – 2 WAYS – OPENING FOR PEDESTRIAN OR FORKLIFT

Electronic motorized roller conveyor, 2-way directions. Complete of motor, photocells, inverter and remote control.

Traction performed via long shaft and elastic belts; including manual or automatic elevation system, ideally designed for pedestrian passage (manual) or forklift passage (automatic) – movement via servo drives.

Standard Dimension: 220 x 220 cm (manual) / 440 x 440 cm (automatic).

Working Level Height: From 85 cm to 95 cm.

  • Dimensions: 2,20 x 2,20 x h0,90 mt
  • Weight: 310 kg
  • Installed power: 0,75 kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Production: 50 mt/ min
