Z 200 R

Conveyors, Handling & Transport systems

Z 200 R

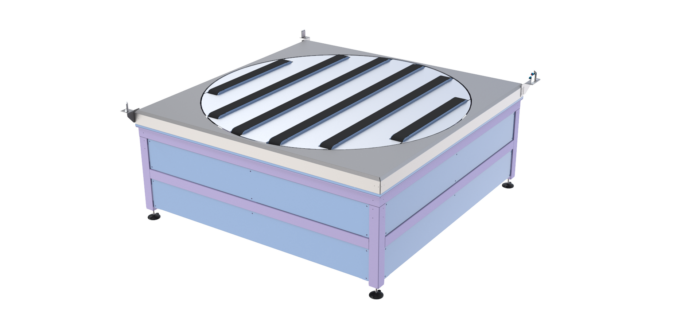

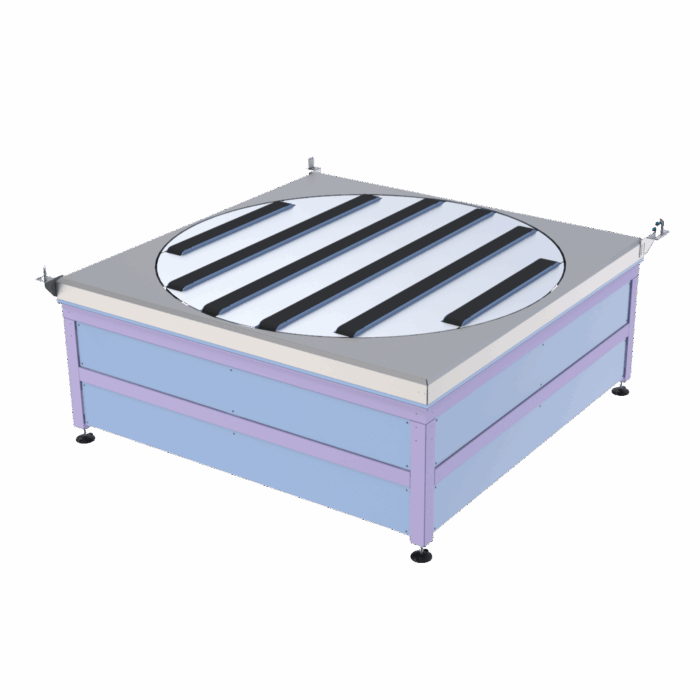

BELT CONVEYOR – 2 WAYS – ROTATIVE 0° > 360°

Electronic motorized rotative belt conveyor, 4-way directions. Complete of motor, photocells, inverter and remote control.

Special function with rotative platform to change the direction of the product by 90°, while keeping the same side infeed at the outfeed.

Standard Dimension: 250 x 250 cm.

Working Level Height: From 85 cm to 95 cm.

  • Dimensions: 2,35×2,45 mt
  • Weight: 890 kg
  • Installed power: 1,5 kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
  • Production: 50 mt/ min
