Z 3 E - Gruppo Grassi

Automatic overlock machine for closing jersey/tricot cases.

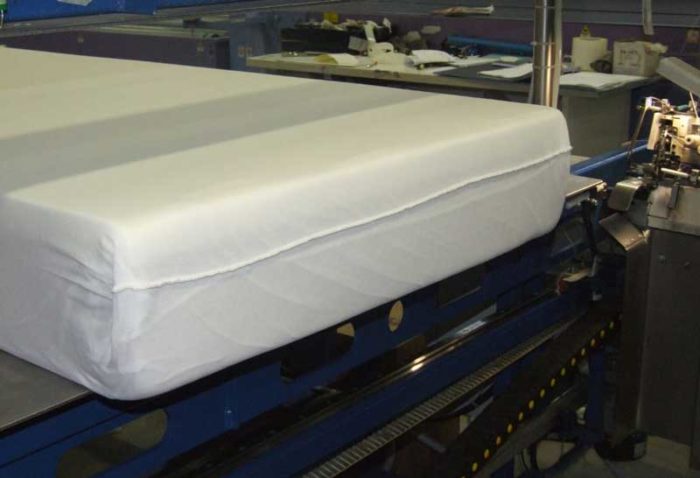

Ergonomic and flexible, it is particularly suitable to close Jersey / Tricot cases on mattresses in polyurethane, latex, with removable cover, etc. with linear, smooth stitches without waves and folds all along the border

Categories: Semi-Automatic Machines, PRODUCTS, Jersey/Tricot Line

STEP 2

Semiautomatic

Description
Features

Description

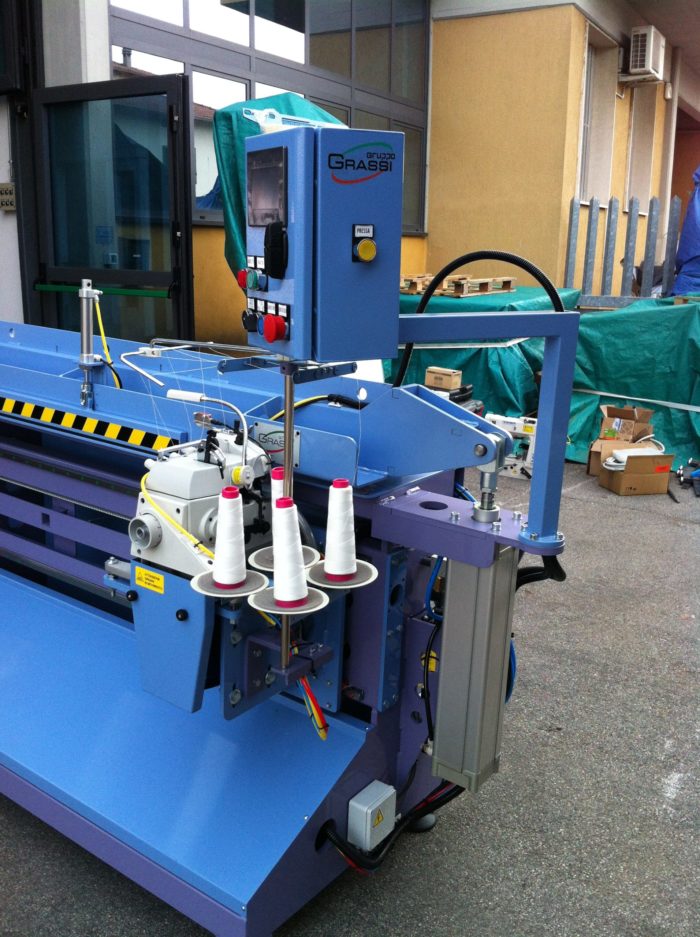

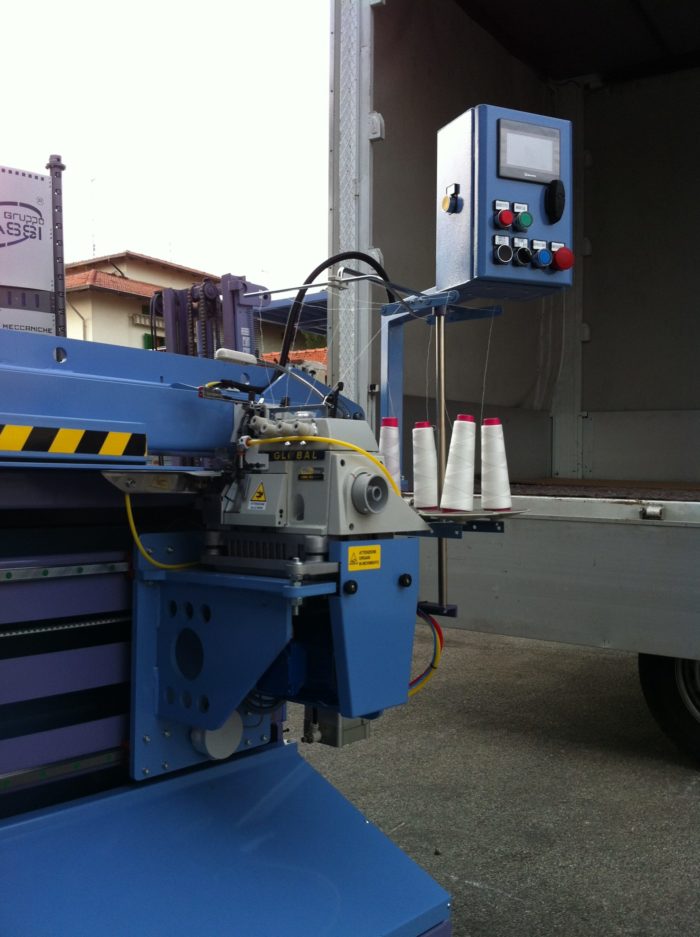

The machine is made up of a mattress storage surface, a mobile stitching group with thread-cutting and sewing thread for closing the fabric and a presser that locks the mattress during sewing.

The Z 3 E machine is composed of:

Double transport industrial cut and sew machine complete with rasa – thread
Independent adjustable mattress pressing
Fabric locking system with automatic scrap recovery

Features

TECHNICAL FEATURES :

Production: 2 cycles per minute
Slab dimensions: max. 220x220cm
Slab passage height: max. 40cm.

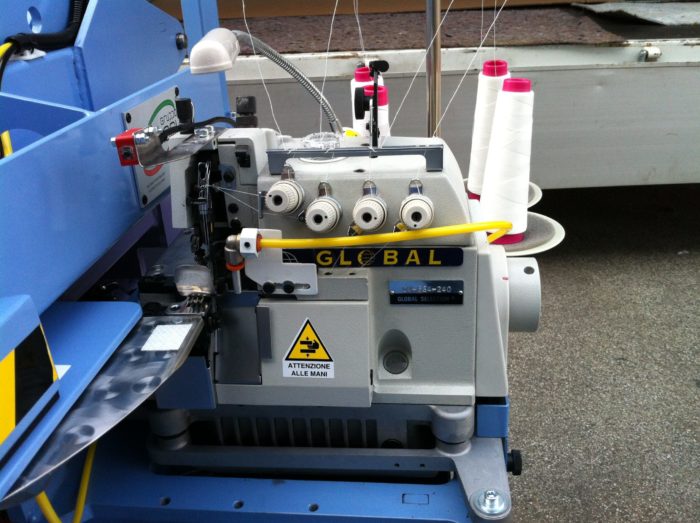

Sewing head: Overlocker – 5 threads – thread trimmer
Sewing / cutting precision: +/- 3 mm.
Dimensions: 2.80×1.10xH1.50 m.
Weight: 950.00 Kg.
Installed power: 2,5 Kw.
Power supply: 400 V + N + T – 50/60 Hz.
Air pressure: 6/8 BAR
