Z3 ELECTRONIC

You are here: Home / PRODUCTS / Border Machines / Z3 ELECTRONIC

Categories: Border Machines, PRODUCTS

OVERLOCK BANDS

Automatic

  • Description
  • Features

Description

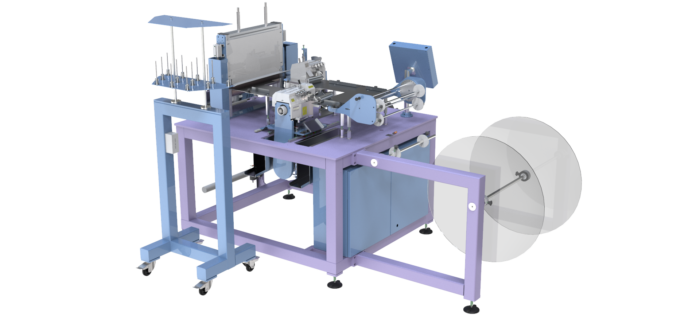

Extremely functional BORDER OVERLOCK machine for mattresses to sew and cut on two sides with working cycle complete automatic.

The machine can work in line with border machine (multi-needles or multi-heads) or directly in rolls.

The flexibility of the machine also allows to do partial working, as overlock just on one side.

TWO VERSIONS AVAILABLE:
Global sewing head / max 2cm thickness
Pegasus sewing head / max 5cm thickness

Features

  • PRODUCTION:  1 band (7/8m) in 1 MINUTE (approximately)
  • MIN/MAX WORK AREA:  from 5cm to 40cm.
  • STITCHING POINT ADJUSTMENT:  electronic from 1 to 6mm
  • TYPES OF MATERIALS:  Stretch/Jacquard/3D type bands with ZIP
  • SEWING HEAD:  No. 2 Overlock (Global or Pegasus)
  • DIMENSIONS:  1,80 mt. x 1,85 mt. x H1,45 mt.
  • INSTALLED POWER:  2 Kw.
  • ELECTRICAL POWER SUPPLY:  400V+N+E    50/60Hz.
  • ATMOSPHERIC PRESSURE:  6/8 Bar.
