FEEDER ROBOT

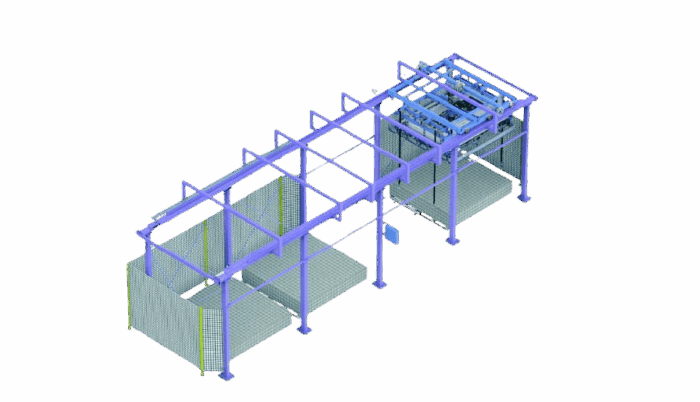

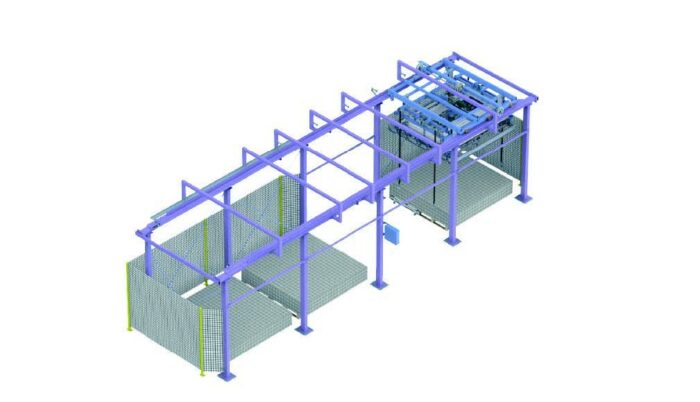

AUTOMATIC ROBOT FEEDER – PICK & PLACE
The ROBOT Feeder is designed for guiding and production assembly lines, offering modular configurations from 2 to 6 loading stations. It features brushless motors and X/Y axis movements for precise material handling.
The system includes an electrical panel, photocells with recognition interface, and high-gripper pins for effective manipulation of mattresses and slabs.
With integrated motorized mechanical feeding belts, it efficiently handles foam sheets, memory sheets, felt, latex, coconut sheets, pocket springs and bonnel springs.
- Dimensions: 3,50x to be agreed x H4,10mt
- Weight: 4000 Kg
- Installed power: 12 Kw
- Power supply: 400 V + N + T – 50/60 Hz
- Air pressure: 6/8 BAR
- Production: 2 pcs/min
