G 220 S/U

You are here: Home / PRODUCTS / Packaging machines / G 220 S/U

Categories: Packaging machines, Compress + Roll Lines, Gluing lines - HOT MELT, PRODUCTS, Handling and Trasport lines

Automatic

  • Description
  • Features

Description

Programmable automatic stacker with two functions: DEPALLETISER / PALLETISER for mattress slabs, latex, box-springs, etc. with loading and/or unloading from pallets.

Operating cycle controlled by “layer” recognition photocells that detect the heights and dimensions so that the element is always picked up or aligned perfectly.

Possibility to depalletise different overlying layers, even of different sizes.

Possibility to depalletise even 2 single elements placed on a double pallet, possibility to depalletise stacks of Mattresses up to 2.50m. (up to 3.00m optional).

Pick-up rollers with controlled speed via brushless ensure perfect alignment and positioning for any type of surface and thickness.

Lifting/Lowering managed by racks and recirculating ball guides to ensure millimetric and sturdy alignment even for heavy weights and thicknesses.

Loading/unloading recipe management via touch screen monitor (independent) with production counters and sequential value entry.



Features

  • Production during pick-up: 30 seconds / cycle
  • Production during palletising:30 seconds / cycle
  • Max slab dimensions: up to 220x250cm
  • Min. slab thickness: from 1cm
  • Type of material: polyurethane/memory/latex/spring/gel
  • Palletising height: min. H35cm max. H250cm (H300cm optional)
  • Dimensions: m 3.50×4.60xH3.50
  • Weight: 1550 Kg
  • Installed power: 6 Kw
  • Machine power supply: 400 V + N + E – 50/60 Hz
  • Compressed air: 6/8 BAR



Related products

  • G 220 SOMIER

    Automatic

  • Macchina imbustatrice FUTURA 800 E Gruppo Grassi

    FUTURA 800 E

    1pc/1min

    Automatic

  • GruppoGrassi

    MARINE 330 VP

    Roller Machines

    Automatic

  • GruppoGrassi

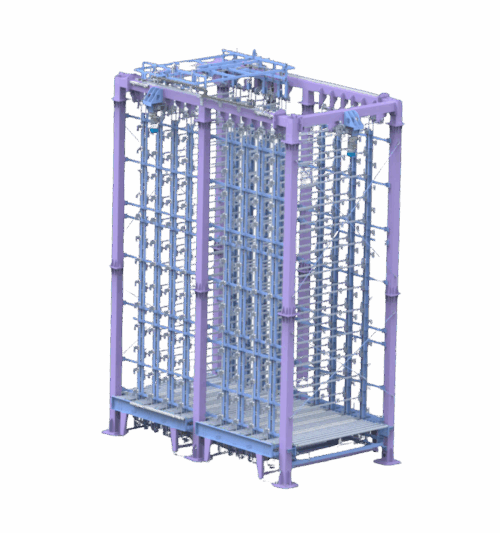

    Z 600 E – L.I.F.O.
