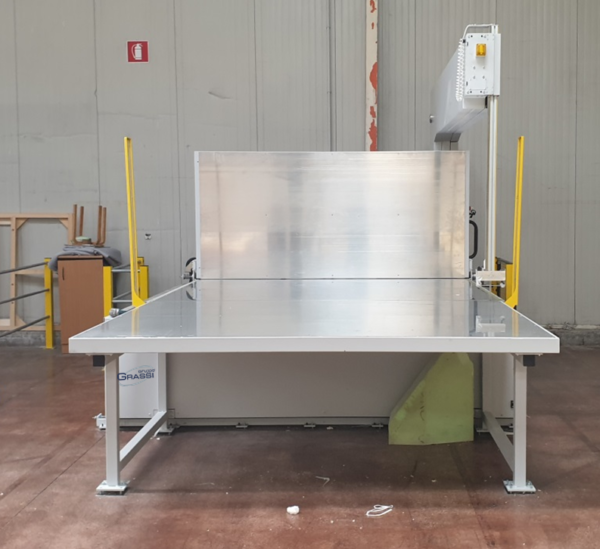

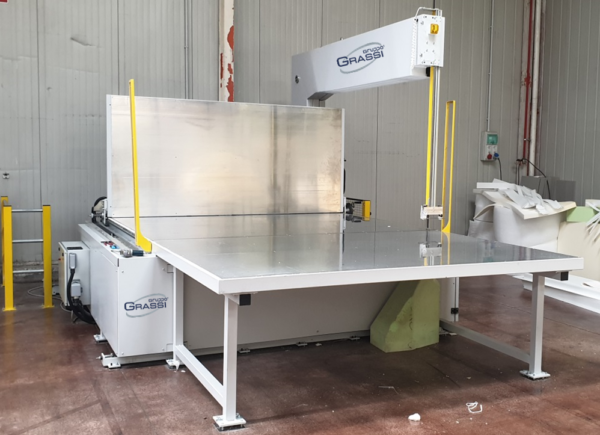

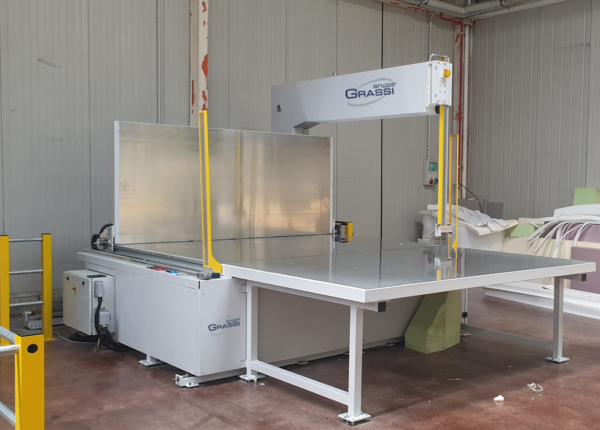

Vertical cutting machine for flexible polyurethane.

Vertical cutting machine with mobile carriage, specially designed for vertical cutting of flexible polyurethane foam, equipped with self-braking motor, shield and blade breakage or out-of-position sensors, pneumatic blade tightener.

Categories: ,

VERTICAL FOAM CUTTER

Semiautomatic

Description

Electronic motorized blade-guide for quick positioning up to a maximum height of 1300mm.

Practical and precise side feeding system, with millimeter scale placed between the floor and the push-block side.

Equipped with an innovative blade sharpening system, using no. 2 motorized grinding wheels placed within the shaft of the cutting machine, so as to ensure a perfect sharpening.

Mobile table in handy lightweight aluminium, mounted on rails that provide maximum smoothness and precision cutting.

AVAILABLE VERSIONS:

GTVM 2000         : Vertical cutting machine with movable bench

GTVM 2000 P     : Vertical cutting machine with movable blade

Features

TECHNICAL FEATURES :

  • Type of material: rigid, flexible, memory, similar
  • polyurethane
  • Processing: polyurethane sheets, blocks, etc.
  • Cutting size: max. H 1300mm.
  • Blade: circular
  • Sharpening: automatic – pneumatic
  • Dimensions: 2.50×2.7xH2.20 m.
  • Weight: 2.400,00 Kg.
  • Installed power: 3,5 Kw.
  • Power supply: 400 V + N + T – 50/60 Hz.
  • Air pressure: 6/8 BAR
