GTVM 3000

You are here: Home / PRODUCTS / Gluing lines - HOT MELT / GTVM 3000

Categories: Gluing lines - HOT MELT, Gluing lines - WATER BASE, Cutting Machines, PRODUCTS

Foam Cutting machine 180° rotating blade

Automatic

  • Description
  • Caratteristiche

Description

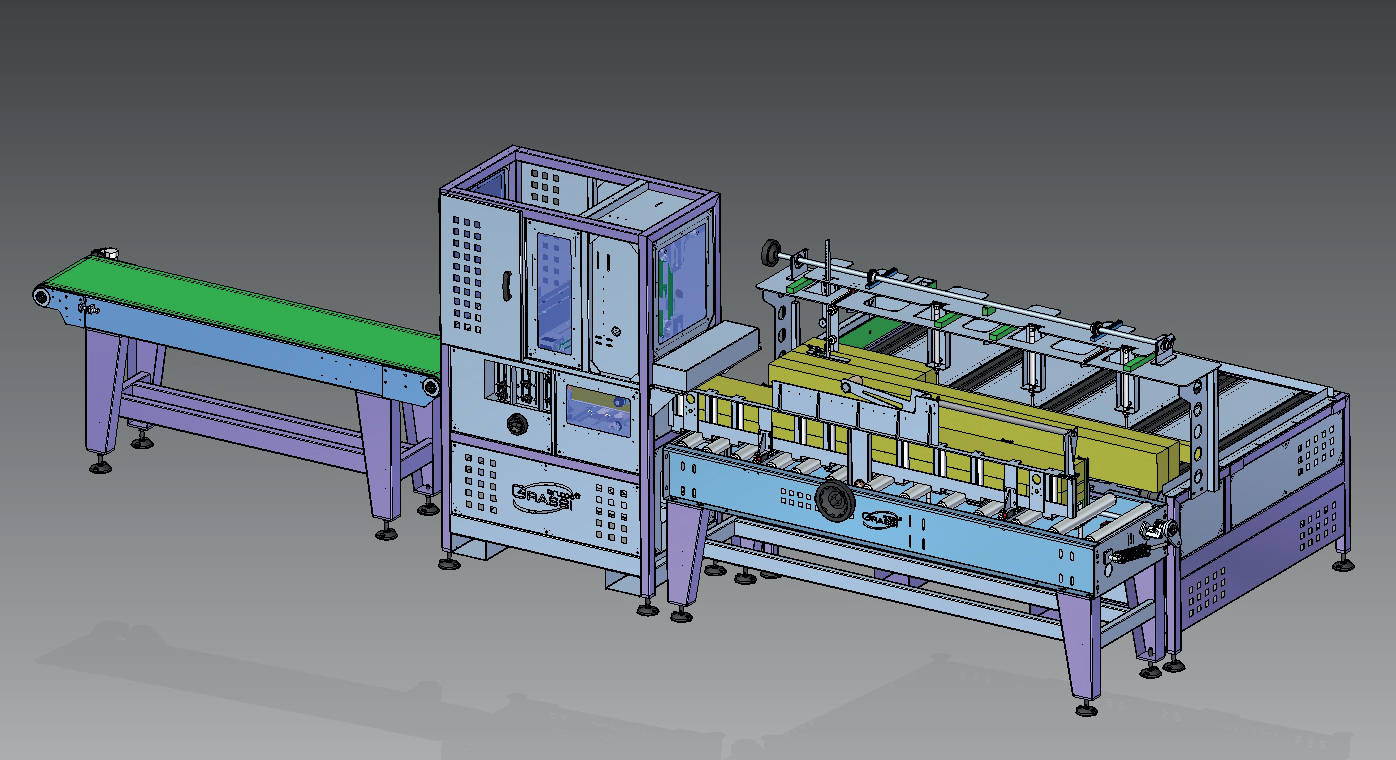

High precision automatic cutting line model GTVM 3000 built into the water-based glue spreader system G 7000 / PRO.

Management of programmable and settable cutting recipes via touch screen monitor (built into or separate from the bonding line as requested) with production counters and sequential cutting value entry.

The cutting line can be disconnected and used as a conveyor only or simply used to trim or cut non-bonded slabs; programming can be customised and the system can be connected to the network for remote assistance.

Caratteristiche

  • Operating speed during cutting: 30m / minute
  • Operating speed during travel: 40m / minute
  • Blade rotation: pneumatically driven from 0° to 90°
  • Work area: up to 220x220cm
  • Work height: from 05cm up to 120cm
  • Type of material: different types of polyurethane, visco-elastic foam,box-spring, etc.
  • Blade sharpening: programmable based on cycle numbers
  • Dimensions: m 5.85×3.80xH2.60
  • Weight: 1150 Kg
  • Installed power: 5 Kw
  • Machine power supply: 400 V + N + E – 50/60 Hz
  • Compressed air: 6/8 BAR
