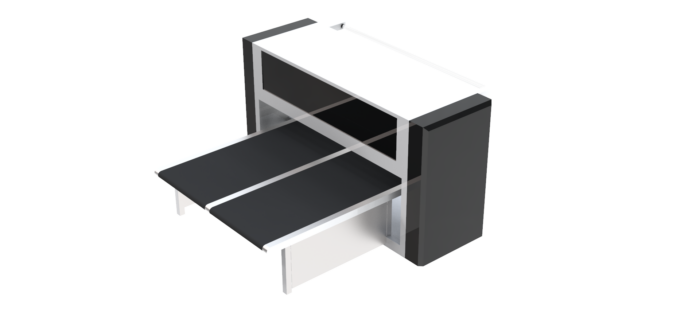

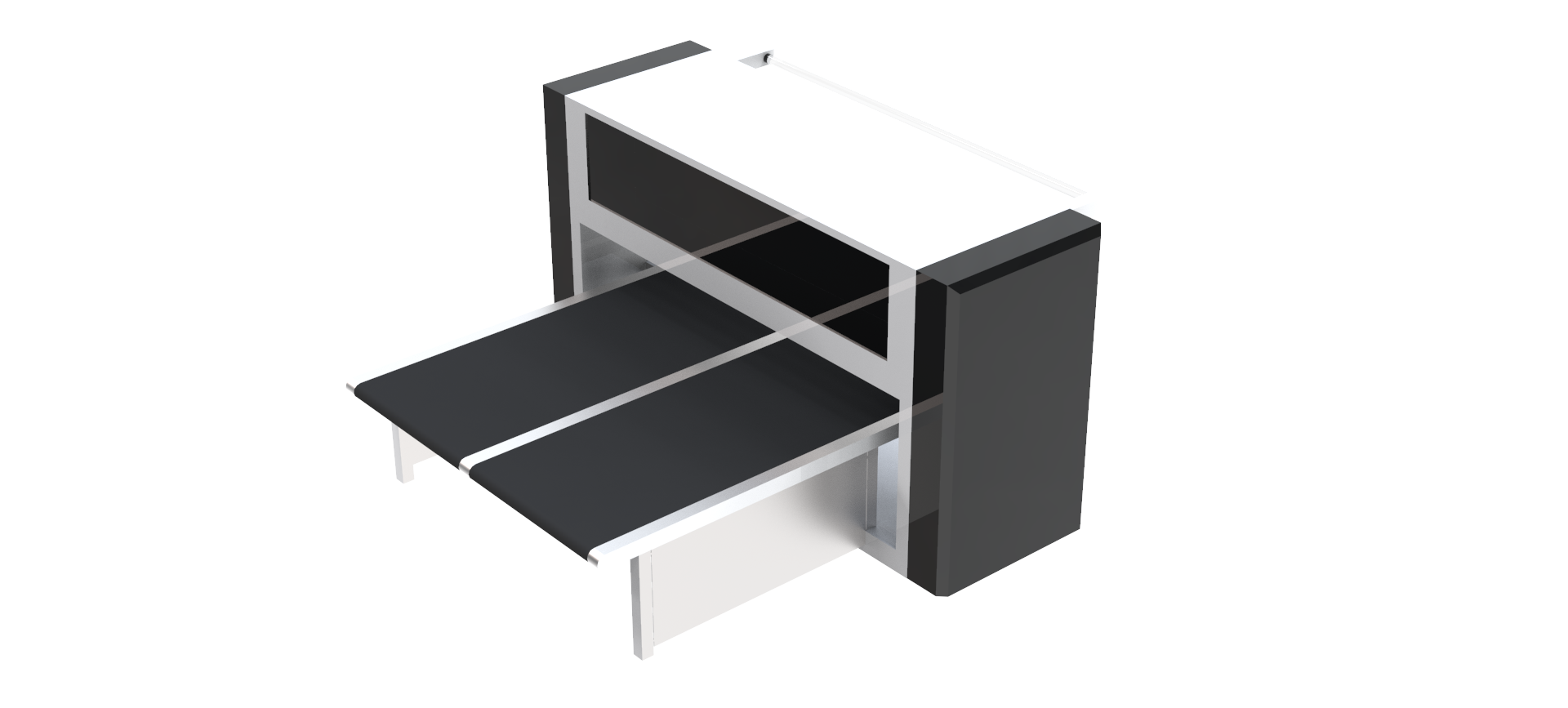

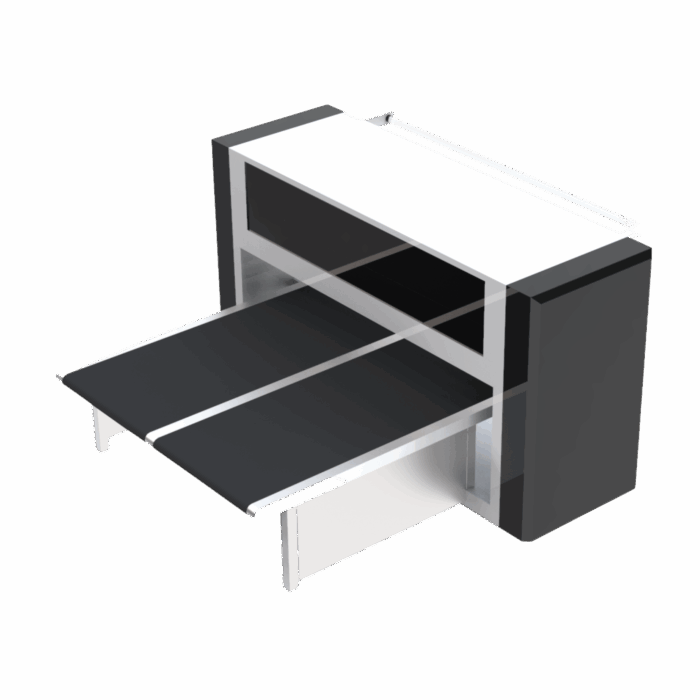

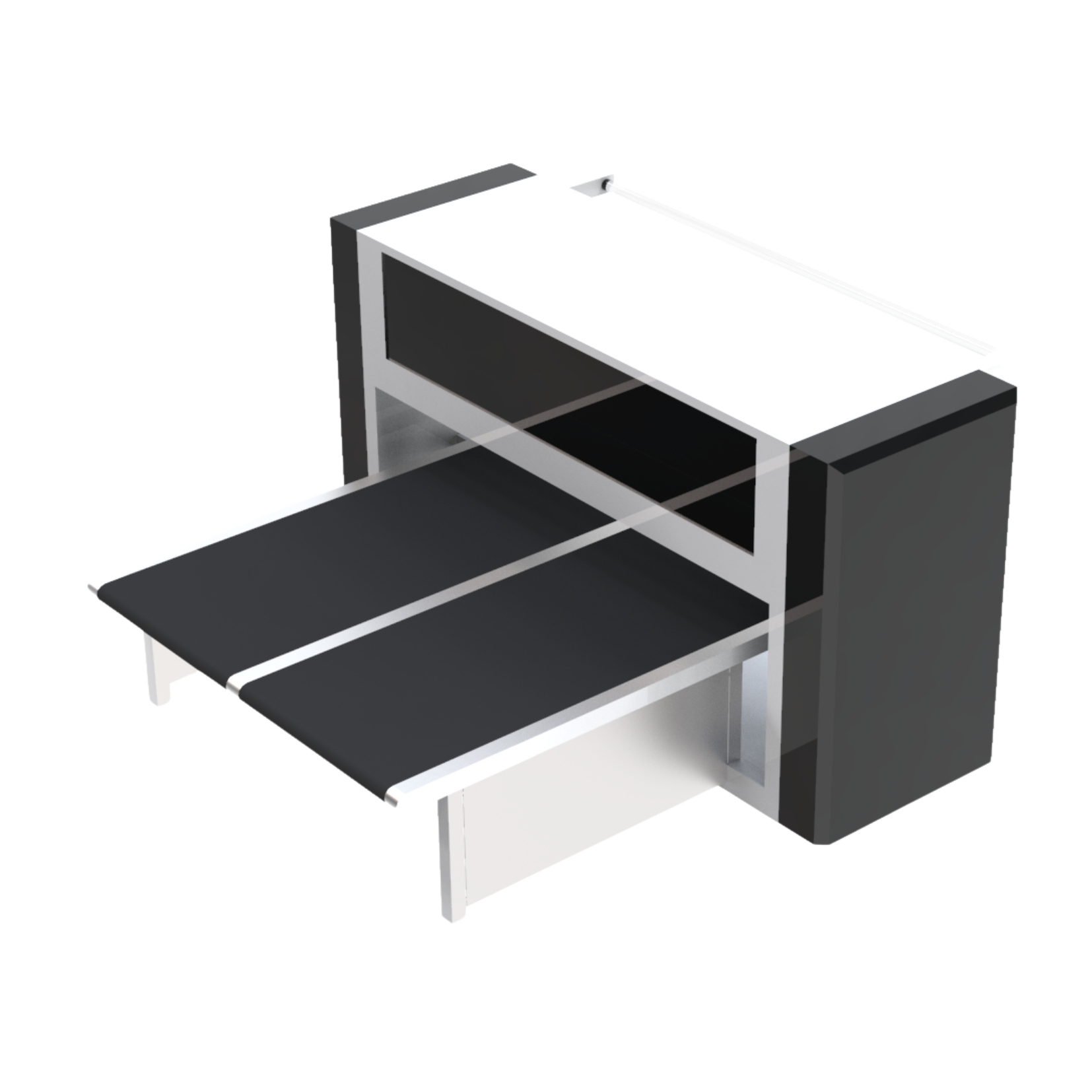

TGM 3.0

You are here: Home / PRODUCTS / Quilting machines / TGM 3.0



Categories: Quilting machines, Cutting Machines, PRODUCTS

Automatic

  • Description
  • Features

Description

High precision cutter with millimetric tolerance to cut panels or fabrics quilted on 4 sides.

Especially modified to cut the entire range of fabrics, including stretch fabric, jacquard fabric, non-woven fabric, padded and quilted fabric, polyester, polyurethane and visco-latex.

The electronic cutter features a colour touch screen monitor, with digital program settings where the cutting recipes, the production counters and the sequential cutting orders can be customised.

Additional blades inserted for cut EDGES such as MULTI-BLADES, available and configured with variable position to be moved by the operators according to the final dimensions.

Features

  • Width of work area:  cm 250 (cm 320 on request)
  • Width of side trimming area:  from cm 175 to cm 250 / 320
  • Production:  No. 2 cycles / minute
  • Cutting precision:  +/- mm 5
  • Cutting blades:  No. 2 lateral blades (left+right)                                                                                                                                 :  No. 1 transversal blade:  No. 14 extra lateral blades
  • Weight:  Kg 1450
  • Power:  Kw 2.5
  • Electrical Power Supply:  220 V
  • Air pressure:  6/8 BAR
