Z 100 M / SM

Semi automatic packing machine

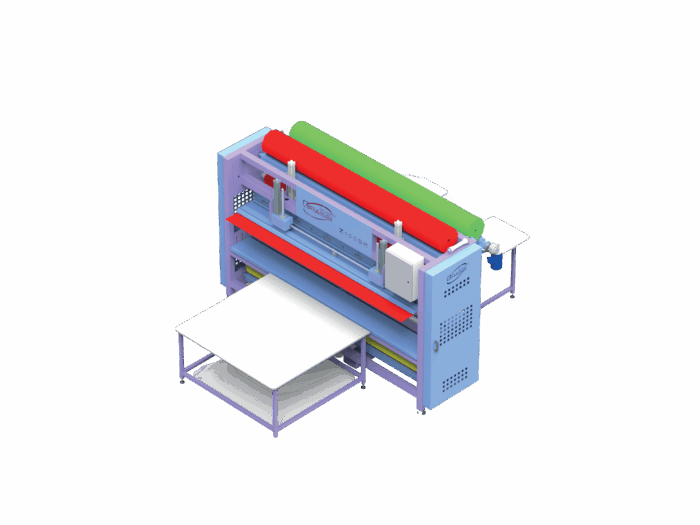

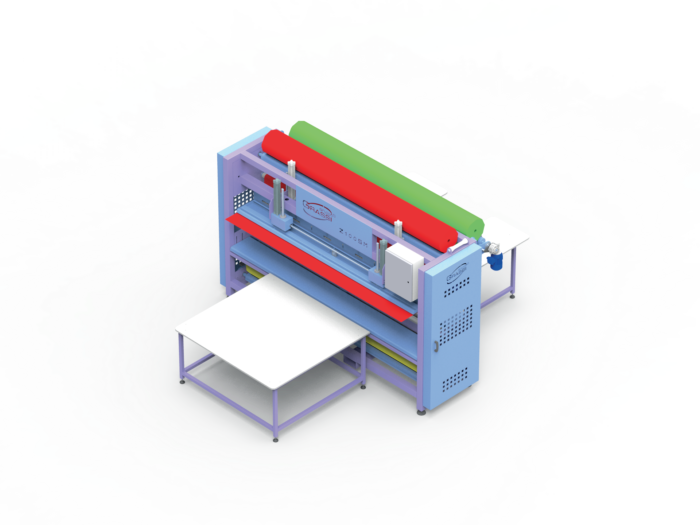

The Z 100 SM is a semi-automatic mattress packaging machine.

It includes a pneumatic press with two cylinders and a “Temp-Coat” sealing bar.

The machine operates with a working speed of 1 mattress per 60 seconds.

It is designed for handling foam, springs and latex mattresses with sizes ranging from 60x160xH50 cm to 220x200xH40cm.

The 10” touchscreen allows operators to program and save production cycles, ensuring efficient and high-quality packaging.

  • Dimensions: 4,00×3,40xH2,40mt
  • Weight: 2100 Kg
  • Installed power: 3,5 Kw
  • Power supply: 400 V + N + T – 50/60 Hz
  • Air pressure: 6/8 BAR
